Radiation protection doors

For the highest level of radiation protection
For maximum safety against gamma and neutron radiation, as well as X-rays, Ensolma door systems are the top choice for the most strict radiation protection requirements. They comply, among other standards, with DIN 6834-1:2012 for radiation protection doors. Our specialists with years of expertise develop and manufacture tailor-made solutions precisely adapted to your requirements.
Ensolma radiation door systems are operated using our pioneering own developed the Ensolma Pneumatic Actuator ePA. Thanks to this unique system, Ensolma door systems remain fully functional even during temporary power failure.

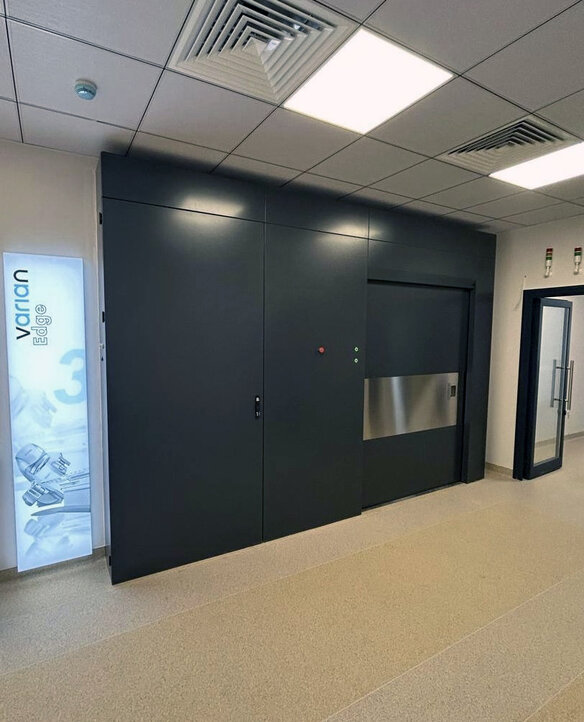

Depending on the weight of the door leaf either hanging or floor-guided sliding door systems available. To ensure all-round radiation protection hanging doors are equipped with an automatically raised and dropped radiation shielding threshold. In the standard version of the floor-guided sliding door systems, the door leaf size ensures overlap with the wall by 100 mm along the contour. The protective material of the door leaf is buried in the floor by 80 mm. The floor channel with a width of up to 300 mm formed in the floor is covered by the automatically folding floor. When the door is closed, the folding floor moves into the end pocket of the door leaf and, conversely, when the door is opened, it is removed from it and placed at floor level.
For the safe operation of the door, it is important that the folding floor remains stationary in the open part of the opening while the door leaf moves. The folding floor is designed to carry gurneys weighing up to 200 kg.
The Ensolma Folding-Floor System (eFF) ensures a very stable threshold-free passage for floor-guided door systems.
The use of an automatic folding floor ensures safe operation of the door and full radiation protection in the area between the leaf and the floor.
The doors are equipped with three safety systems:
- the anti-squeeze system monitors the entire width and and height of the opening and reacts to any obstruction to the leaf movement;
- a vertical infra-red sensing channel monitors the opening area at the last stage of door closing;
- an additional safety zone within a one metre radius of the door.





Features at a glance
Ensolma radiation protection doors fulfil the relevant provisions of the Machinery Directive 2006/42/EC and the Electromagnetic Compatibility (EMC) Directive 2014/30/EU, as well as the standards EN ISO 12100:2010, EN 60204-1:2018 and EN 16005:2013. Depending on the area and location of use, they fulfil the relevant special standards and national standards.
Ensolma radiation protection doors provide reliable protection:
Design options for Ensolma’s radiation protection doors:
Available constructions
Ensolma Sliding Door Systems

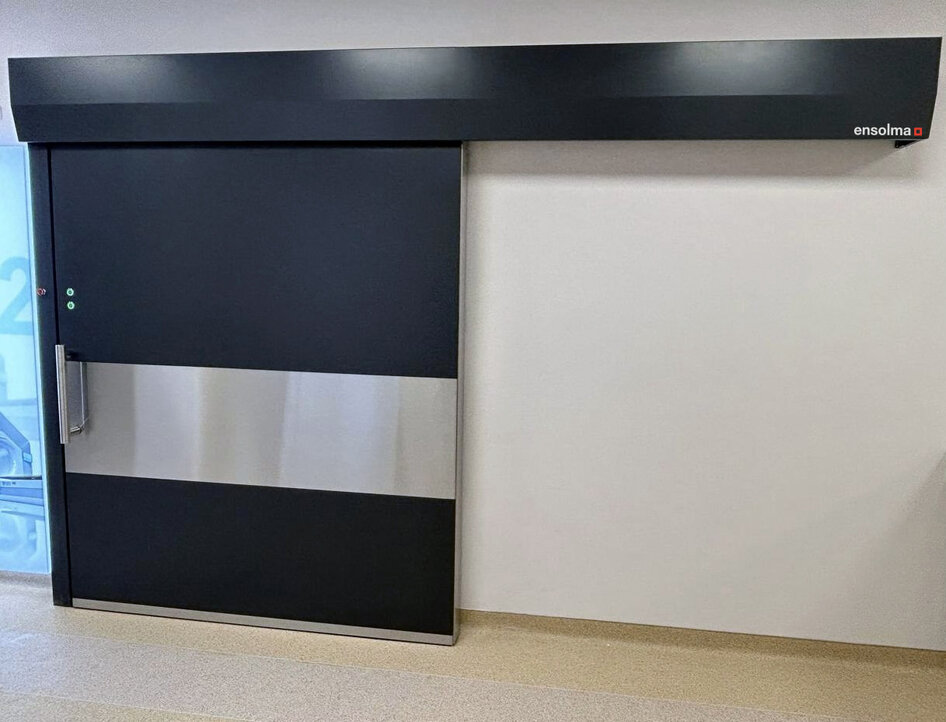

Ensolma hanging sliding door systems with an automatic radiation protection threshold can be implemented for weights up to 2 tons. For heavier applications, up to 53 tons and more, a floor-guided versions with our automatic folding floor are used. Both are operated with our pneumatic drive ensuring reliable and efficient operation even under demanding conditions.
